| Owner | Jerry Dycus |
|---|---|
| Location | Riverview, Florida United States map |
| | |
| Vehicle | custom built |
| Motor | General Electric Series Wound DC 5 HP (Citicar) |
| Drivetrain | Direct drive, 5.3:1 Gates Polychain Belt |
| Controller | 8 speed contactor |
| Batteries | 8 Trojan T-125, 6.00 Volt, Lead-Acid, Flooded |
| System Voltage | 48 Volts |
| Charger | Lester 48 Volt 35 Amp |
| Heater | 12 volt electric blanket |
| DC/DC Converter | separate 12 Volt charger and 12 Volt AGM battery |
| Top Speed | 60 MPH (96 KPH) estimated |
| Range | 100 Miles (160 Kilometers) estimated |
| Seating Capacity | 2 adults |
| Curb Weight | 1,300 Pounds (590 Kilograms) |
| 2 seat, 3 wheel, mini-suv body and frame of wood and epoxy: 300 pounds battery weight 600 to 800 pounds front seat folds down to make a double bed 3 kw DC gas charger for unlimited range air conditioner in future. | |

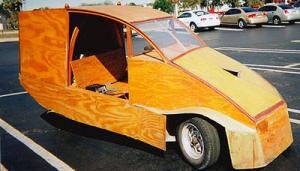

Electric Woody
Last Updated 05-04-2004
