| Owner | Christian Haas |
|---|---|
| Location | Concepcion, Bio Bio Chile map |
| | |
| Vehicle | Surrey Quadracycle Sirenetta-style. |
| Motor | Crystalyte 5305 Brushless DC High torque hub motor, 750W continuous |
| Drivetrain | Gearless hub motor |
| Controller | Crystalyte Phoenix 48V-40A 12 x IRFB4710 FET |
| Batteries | 4 CCB 12DD-33, 12.00 Volt, Lead-Acid, AGM CCB Valve Regulated Lead Acid (VRLA) with Absorbent Glass Material (AGM) 33Ah deep cycle |
| System Voltage | 48 Volts |
| Charger | Electric Scooter Charger Generic 4.5A with fan cooling |
| DC/DC Converter | 36-60 VDC in / 12 VDC out Generic 10A |
| Instrumentation | 50V panel Voltmeter 30A panel Ammeter |
| Top Speed | 15 MPH (24 KPH) Estimated. |
| Range | More than enough... |
| Seating Capacity | 3 |
| Additional Features | Lights, scooter horn and 12V plug for additional accesories such as a portable electric tire compressor. |
| To Dad on his 65th birthday. Actually, he is the real owner! Special thanks to Joshua Goldberg WebPage and Rick Kosiorek WebPage for their kind assistance. | |

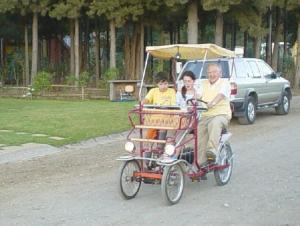

Surrey Quadracycle
“Opiwagen”
Last Updated 04-16-2008
