With Some PaintGetting lightsRear swingarmAdded turn signalsRear break light and turn signalsEarly morning test rideDrive sideMotor and shaftExpanded the battery box
OwnerMark Gelbien
Owner's Other EV2009 LIFAN GS200
LocationLevittown, New York United States map
Email email image

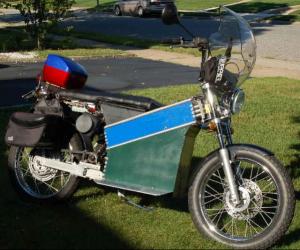

Vehicle2008 BBM-1
Built from the ground up to be a electric bike
MotorCrystalyte 5302 Brushless DC
This work with a 3KW boost motor which is a 48V Unite motor.
DrivetrainMain drive is a Hub motor
ControllerKelly KEB726001
6 KW controller I'm running it at 50% on the software slider giving me 80 amps battery current
BatteriesHI Power, 3.30 Volt, Lithium-Ion
3 48 volt 16 cell pack in parallel
System Voltage48 Volts
Charger unknown
provided by Electric Motorsport
Instrumentationcycle annalist
Top Speed55 MPH (88 KPH)
Range50 Miles (80 Kilometers)
Watt Hours/Mile80 Wh/Mile
Seating Capacity2
Curb Weight230 Pounds (104 Kilograms)
Tires3 17 front
2.75 18 rear
7/11/08
Well she is completely road legal I have a vin she is inspected and I have plates and insurance. I took my road test for my license with the bike. That was a experience but went well and I have my motorcycle license.
I'm tweaking the suspension and fine tuning the ride. I so enjoying riding the bike.
5/17/08
Version 1 is basically complete and I am now going for a VIN number. I have a inspection date by NYS DMV the week of 5/19. I've sent in all the paperwork and hope to have her on the road within 2 weeks
2/16/08
The goal of this project is to design a frame around the batteries so that no added weight was needed to hold the batteries resulting in a very light weight bike. The box frame design turns out to be very strong. The bike is a works in progress. As of 2/16/08 I finishing up the head light, brake lights, turn signals and horn. Then I'll start working on the LifeP04 batteries. I have 48 3.3 volt 20AH cells sitting on the bench.
