Perm PMG-132Electric SnapperRear viewNot Wimpy!
OwnerBryan Rowell
LocationSimpsonville, South Carolina United States map
Email email image

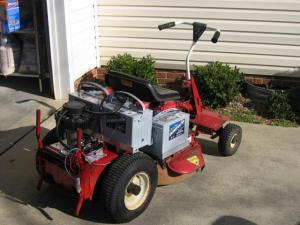

Vehicle1993 Snapper Rear-engine rider
Well-worn 25" cut riding mower that I traded for.
MotorPerm Motor PMG-132 Permanent Magnet DC
DrivetrainBasically stock. Blade drive pulley was changed to keep cutting speed the same. Perm motor on 48V runs at 2300 rpm versus stock engine at 3500rpm.
Controller
Two Albright SW-80 contactors are used. The starting contactor is in series with (2) paralleled 2-ohm resistors to limit inrush. Then the run contactor can be switched.
Batteries4 Deka 8G24M, 12.00 Volt, Lead-Acid, Gel
System Voltage48 Volts
ChargerSoneil 4808SRF
Charge voltage pot must be adjusted to work properly with gel batteries. Charge time after cutting is about 16 hours.
InstrumentationFluke DVM
Top Speed3 MPH ( 4 KPH)
Stock is about 4.6 mph.
RangeAbout 1 hour of grass-cutting.
Seating Capacity1 adult + 1 child on my lap
Conversion Time1 1/2 years
Conversion Costmotor $900
batteries $600
contactors $60/ea x 2
charger $175
wiring $125
Additional FeaturesCustom 1 gauge cables purchased from Genuinedealz.com.
I measured the killowatt-hours to recharge the battery using a Brand Electronics 20-1850 power meter. It uses less than 2.5 KWh for my 1/4 acre lot, which takes about an hour to finish. That's less than $0.25 per cut.
