| Owner | Adam |
|---|---|
| Owner's Other EVs | 2003 500w Funrider Scooter 800 Watt Brushless Scooter |
| Location | Mansfield, England United Kingdom map |
| | |

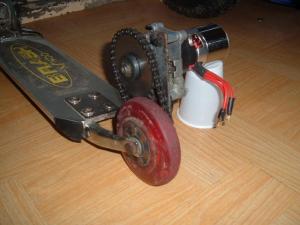

| Vehicle | 2005 Razor style scooter, Abec 5 bearings Home made electric scooter based on a razor style scooter, powered by a brush less 'outrunner' motor |
| Motor | Tower pro 800w (1200w peak) outrunner Brushless DC weight 285g power 800w (over 1hp) Rpm 380 per volt( 24v=9120) RC aircraft motor |
| Controller | FLY OPTO 60A RC aircraft speed control, throttle control by servo tester with remote potentiometer(brass box on handlebars) |
| Batteries | 2 Yuasa np 12-12, 24.00 Volt, Lead-Acid, Gel 2 12v 12Ah lead acid batteries in backpack for testing. Hopefully upgrade to Li-Po one day mounted in scooter deck. |
| System Voltage | 24 Volts |
| Charger | Generic 24v Chinese ebike/scooter charger |
| Heater | ha |
| DC/DC Converter | Brusa |
| Instrumentation | none |
| Top Speed | 20 MPH (32 KPH) Accelerates like a drag racer. lean forward or be thrown off. 0- top speed in about 1 second |
| Range | 6 Miles ( 9 Kilometers) no proper range test as speed controller exploded |
| Seating Capacity | one, standing room only |
| Curb Weight | 10 Pounds (4 Kilograms) not including batteries. |
| Tires | tiny solid |
| Conversion Time | A couple of weeks |
| Probably the highest power to weight ratio scooter ever made. If only I had some li-po batteries. To see this scooter in action click on to youtube and type ' worlds lightest electric scooter'. this was filmed before the motor was removed and fitted to a larger scooter. fun as it was, the tiny wheels didnt take too well to sustained riding at 20mph! | |
800w Razor-style Scooter
Last Updated 02-29-2008
