In transitionOld scooter nh80wiring
OwnerJonathan Mortreux
LocationMontreal, Quebec Canada map
Email email image

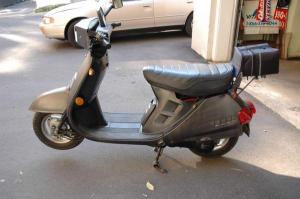

Vehicle1984 Honda Honda Aero NH80
MotorBriggs and Stratton Etek permanent magnet Series Wound DC
ControllerAlltrax 4834 Alltrax AXE Programmable
Batteries2 Power Sonic 12V60AH, 12.00 Volt, Lead-Acid, Gel
System Voltage24 Volts
ChargerSoneil 2416SRF
24 Volt Charger
8Amp CC, Dual Voltage Input 115/230VAC
equivalent to 16Amp heavy transformer charger in charging time
DC/DC Converter 24-12V DC-DC
small and cheap 24-12V DC-DC converter from Maddison.ca
Top Speed34 MPH (54 KPH)
34mph (55kms) Tested.

AccelerationSame as before. ( it's very impressive for a 24V system)
Range15 Miles (24 Kilometers)
not tested yet. max tested with a lot of hills is 12Kms.
Seating Capacity2 adults
Curb Weight222 Pounds (100 Kilograms)
Old scooter was 184 lbs it's now 222lbs.
Conversion Time3 months part time
Conversion Cost2800$CAN, I didn't go for cheap parts because of the lack of experience in electronics.
But I'm happy with the price / Results
Big THANKS to Olivier and his family for their help, their garage and the food.
