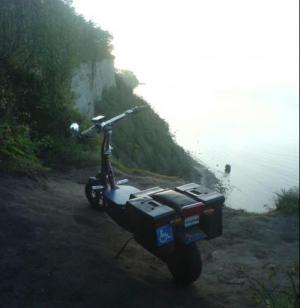

Toy SurpriseTSFromRear
OwnerSam Maynard
Owner's Other EV1981 Jet Electra-Van
LocationPort Townsend, Washington United States map
Email email image
Vehicle2005 Custom
Custom built from a modified Currie Mongoose frame and 49cc Minimoto parts
MotorBriggs and Stratton Etek Permanent Magnet DC
Pancake, 7HP continuous, 15HP Peak
Drivetrain#35 Chain, single speed, 23 tooth front sprocket, 48 tooth freewheeling rear sprocket. 13 X 5.00 rear tire.
ControllerAlltrax Axe 300
Programmable 24-48V DC Controller
Batteries15 Thunder Sky LFP40AHA, 3.20 Volt,
Working on BMS. For now I am just being cautious not to overcharge or over expell cells. So far pack performance has been excellent.
System Voltage48 Volts
Charger YangMing YM48-9
48V, 9A

Calibrated to "float" the pack between 56.5V and 59.5V, which is low enough to reasonably ensure no individual cell sees over 4.2V, but theoretically high enough to shut off at over 90% SOC.
HeaterYou can sort of warm your hands a little bit on the headlight hood when it's on.
DC/DC Converter
Use 10AH valve regulated 12V Pb for aux battery.
InstrumentationGarmin GPS72, Voltmeter Both hand held removable), sometimes a laptop on the deck with DAQ.
Top Speed55 MPH (88 KPH)
AccelerationIt doesn't weigh much. It gets there quick. All I can do to hold on.
Range40 Miles (64 Kilometers)
This is real, not exaggerated.
Watt Hours/Mile50 Wh/Mile
Approximate. Freewheel sprocket with strategic "burst and glide" riding strategy seems to yield the best efficiency.
EV Miles
Current:3,000 Miles (4,827 Kilometers)
Seating Capacity1 Adult, 1 child or
1 Adult, 3 bags of groceries or
1 Adult, 1 barbecue sized propane cylinder.
Curb Weight170 Pounds (77 Kilograms)
Tires13 X 5.00 Rear
Conversion TimeLost track
Conversion CostAbout $2600.00 in batteries, motor, controller, contactor, misc. hardware, welding and machining.
Additional FeaturesHalogen fog headlight, horn, turn signals, LED Brake and tail lights, novelty license plate.

Plastic "saddle bags" are actually portable hanging file folder cases you can get at any office supply store. One side can simply be pulled out of its' "socket" by the handle.
Conceived to maintain the look of a toy scooter, but have range and speed performance that is useful for transportation. Can haul more groceries, tools, whatever on the deck than most motorcycles can carry.
