OwnerAerowhatt
Owner's Other EV2002 TECC Viento
LocationAlbuquerque, New Mexico United States map
Email email image
Vehicle2006 eGO eGO 2 LX
MotoreGO 8656 Permanent Magnet DC
Brushed Permanent Magnet (1.99hp)
Model: 8656 (3.7)
DrivetrainTwin reduction, synchronous belt drive.
ControllerSevcon SC1000
24/36V 180amps
Batteries2 B and B EVP-35-12, 12.00 Volt, Lead-Acid, AGM
U1 Group size
System Voltage24 Volts
ChargerLanpower
24V 6amp smart charger (stock)

Two small Soniel chargers are also installed increasing the charge rate to 10amps.
HeaterNone
DC/DC Converter
None
InstrumentationBattery voltage gauge (Ten LED)
Top Speed27 MPH (43 KPH)
Stock top speed is 24 - 25mph
AccelerationExcellent
Range18 Miles (28 Kilometers)
18 to 60 miles depending on battery configuration and driving mode selected. 18 miles is "go fast" mode with stock battery capacity. 60 miles is with trailer and additional batteries in "go far" mode
EV Miles
Current:1,563 Miles (2,514 Kilometers)

    As of 8/1/2007
Seating Capacity1 adult
Curb Weight140 Pounds (63 Kilograms)
Curb Weight with single wheel trailer and the batteries installed on the trailer is 179lbs
TiresMaxxis High pressure BMX tires
Conversion Cost$1750 sticker price
Additional FeaturesOriginal motor sprocket was replaced with a larger steel sprocket to increase reliability and top speed.

Chassis blower set installed to help keep motor temps down when hauling.

Wireless alarm system installed.

On board charging increased to 10 amp rate.

Powercheq BMS installed

External battery cables installed such that the on board Powercheq unit also serves any external battery pack connected.

Trailer hitches installed for both a large two wheeled flat bed trailer and also a single wheel trailer.

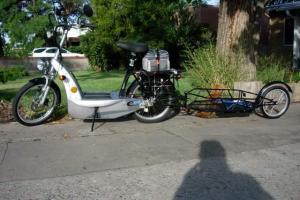

The singe wheel trailer is great (Available Bike Nashbar, Nashbar.com) . It's about as narrow as the bike and therefore doesn't limit route choices like wider trailers do. It doesn't interfere with the cargo baskets! With extended range batteries permanently mounted to the trailer no range reduction results from towing it. The batteries are mounted under the longitudinal rotation axis of the trailer making it more stable than it would be without them. Without additional cargo you don't know it is back there while riding.

The bike is capable of carrying nothing but batteries for over 60 miles of maximum range towing the single wheel trailer (in go far mode). With all three extended range battery packs connected total capacity aboard is 102 AH at 24 volts (2,448 WH)
