Big ass motor152v nominal
OwnerDave Barden
Owner's Other EVs1988 Nissan Pickup
1939 Poulsbo Boat
LocationSeattle, Washington United States map
Email email image

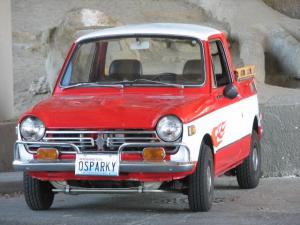

Vehicle1972 Honda N600 Sedan
Chopped into a pick-up and converted to
153.6v Volt electric
MotorNetgain warp 9 Series Wound DC
breathed on by Jim Husted.
Drivetrainstock front wheel drive. 4 speed. Stock
drive train connects via an Eagle Belt to the
motor mounted where the cylinders used to be
ControllerCafe Electric Z1K
zik lv with electric reverse
Batteries48 CALB/Skyenergy 100ah, 3.20 Volt, Lithium-Ion
as of 4/2017 this pack is pushing 8 years
old. range is starting to fall off. down
from 55 to about 40
System Voltage154 Volts
ChargerManzanita Micro PFC20
amp meter
Heaternone
DC/DC ConverterIntelli Power PD 9160
InstrumentationEV Dashboard and stock gauges
Top Speed110 MPH (176 KPH)
that's calculated. I have had it up to 75 in
third gear. 4th gear should be good for
100+. 1/4 mile in 19.5 secs
Accelerationfun.
Range40 Miles (64 Kilometers)
this is a smile wagon. gets more smiles per
mile than any car I have ever owned. ;^)
Watt Hours/Mile280 Wh/Mile
havent checked lately. watt meter function
stopped working.
EV Miles
Start:63,400 Miles (102,010 Kilometers)
Current:73,880 Miles (118,872 Kilometers)
Total:10,480 Miles (16,862 Kilometers)
Seating Capacity2 adults, and one 70lb dog
Curb Weight1,650 Pounds (749 Kilograms)
curbweight
Tires10 inch
Conversion Timeseveral years off and on
Conversion Costbattery pack was $5500, motor $2200, zilla
$2600
Additional Featuresflames. add 5mph to top speed
