OwnerAlexander
Owner's Other EVEV mini Scooter 132 N*m max
LocationMoscow, Moscow Russian Federation map
WebWebPage

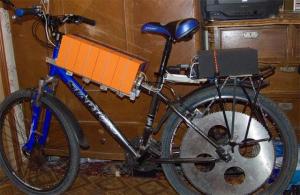

Vehicle2006 Stark Status
MotorFulling Motor 440 Watt Brushless DC
440 Watt 48 Volt 3000 rpm DC motor 1,4 N*m(4,2 N*m max.) with reduction 1/11.
DrivetrainChain transfer
ControllerFulling Motor
48 Volt(36-56V) 20 A max.(10 A continuous) controller for brushless motor
Batteries8 Delta 12AH, 12.00 Volt, Lead-Acid, AGM
High rate series
System Voltage48 Volts
ChargerTelwin NEVADA 15
Instrumentationvoltmeter and Bicycle computer
Top Speed23 MPH (37 KPH)
23 MPH(37 KPH) on flat road, no wind
21 MPH(33 KPH) in easy rise
Accelerationsmooth
Range50 Miles (80 Kilometers)
range about 50 miles with average speed 12 MPH(19 KPH) (With help pedals at start and in an abrupt hills)
35 miles with average speed 20,6 MPH(33 KPH)
EV Miles
Start:317 Miles (510 Kilometers)
Current:625 Miles (1,005 Kilometers)
Total:308 Miles (495 Kilometers)

    As of 6/25/2007
Seating Capacity1 adult
Curb Weight100 Pounds (45 Kilograms)
Conversion TimeNear 1 month
Conversion CostNear 800 $
Additional Featuresmotor 250$
controller 153$
Chain asterisks to order 153$
Accumulators 200$
voltmeter and Trifles

Download video of trips is possible here:
WebPage
WebPage
WebPage
