OwnerJon Eggenhuizen
LocationSydney, New South Wales Australia map
Web/EmailWebPage email image

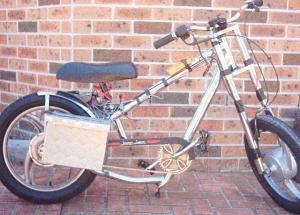

Vehicle2006 Western Chopper
converted
Motor 200w 36v brushed Hub Motor 20 inch Permanent Magnet DC
Motor modified from 2 brushes to 8, and run at Double volts
DrivetrainDirect drive Twin Hub Motors ,Brushed 36v Run At 72v.
Controller Jonegg special
custom made 36-200v 3kw ,picaxe base ,fully programable ,current limmiting ,regen.
Batteries6 Hawker EP SERIES G12V16AH10EP, 12.00 Volt, Lead-Acid, Gel
System Voltage72 Volts
Charger Modified 36v 6amp
Switchmode 2 stage 36v 6amp
HeaterAustralian sun
DC/DC Converter
External cd rom drive 36-200v 12&5v out 2amps
Instrumentationammeter
Top Speed35 MPH (56 KPH)
will cruise at 50 kph(31mph) 7-10 amps
Accelerationcurrent limited for distance 25 amps
0-50 kmh 6 seconds
No current limmit 3 seconds
Range35 Miles (56 Kilometers)
no current limit 25 km (15 miles)
Most tested 40 km (25 miles) normal riding around town,

Watt Hours/Mile4000 km (2500 miles) 20km trips to work and home
EV Miles
Current:4,000 Miles (6,436 Kilometers)

    As of 1/21/2007
Seating Capacity1 adult
Curb Weight80 Pounds (36 Kilograms)
30kg of bats and 10kg frame
Tires20 inch push bike
Conversion Time3 months
Conversion Cost$2000 plus
